Infrared Sauna Electrical Guide
What you need at the wall before your sauna arrives, in plain English.
START HERE
Which model are you planning for?
Your electrical requirements are completely different depending on your model. Select below to see only what applies to you.

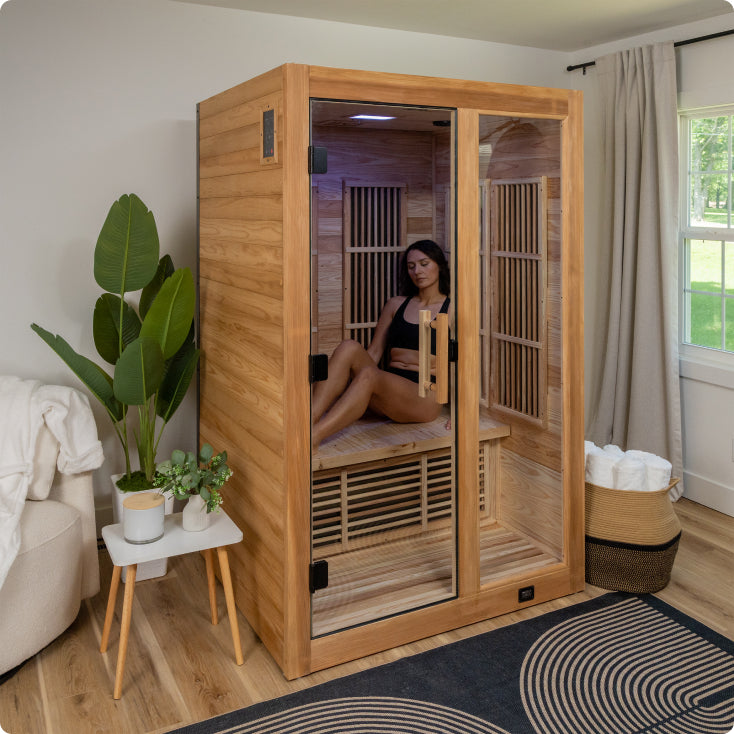

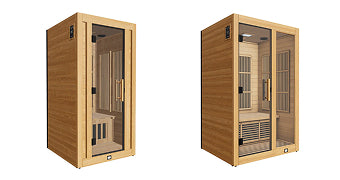

1 & 2-Person
120V • Plug-and-Play
Standard household voltage. If a dedicated outlet already exists in your room, no electrician needed.

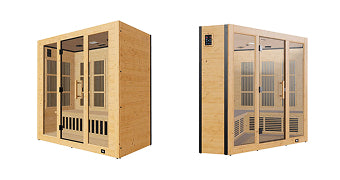

4-Person
240V • Electrician Required
Higher voltage circuit. A licensed electrician needs to install the right outlet before the sauna arrives.
Viewing requirements for 1 & 2-Person Models, 120V Plug-and-PlayChange Model
CHANGE MODEL
THE GOOD NEWS
Your Sauna Ships Ready to Assemble. The Electrical Connections Are Simple.
Every Backyard Discovery Rylan infrared sauna ships with its panels fully pre-wired. During assembly, you connect the panels together using simple, consumer-friendly plug-in connectors, the same push-together style you'd find on everyday electronics. No tools, no electrical experience, and no electrician access to the interior is required. The only external connection is the power cord to the wall outlet.
- All panels arrive fully pre-wired. During assembly you connect them together using simple push-in connectors. No tools or electrical knowledge needed. The power cord then exits from the roof and plugs directly into a wall outlet. Cord length is approximately 9 ft (1 & 2-person) or 12 ft (4-person).
- No internal electrical work. Your electrician does not need access to the interior of the sauna. Their work stops at the wall outlet.
- No adapters. No extension cords. Ever. The sauna must plug directly into its dedicated wall outlet. Power strips and extension cords create fire and shock hazards and are not permitted under any circumstances.
- Indoor use only. The Rylan Collection is designed exclusively for indoor, climate-controlled spaces. See the Indoor Use section below.
YOUR ELECTRICAL SETUP

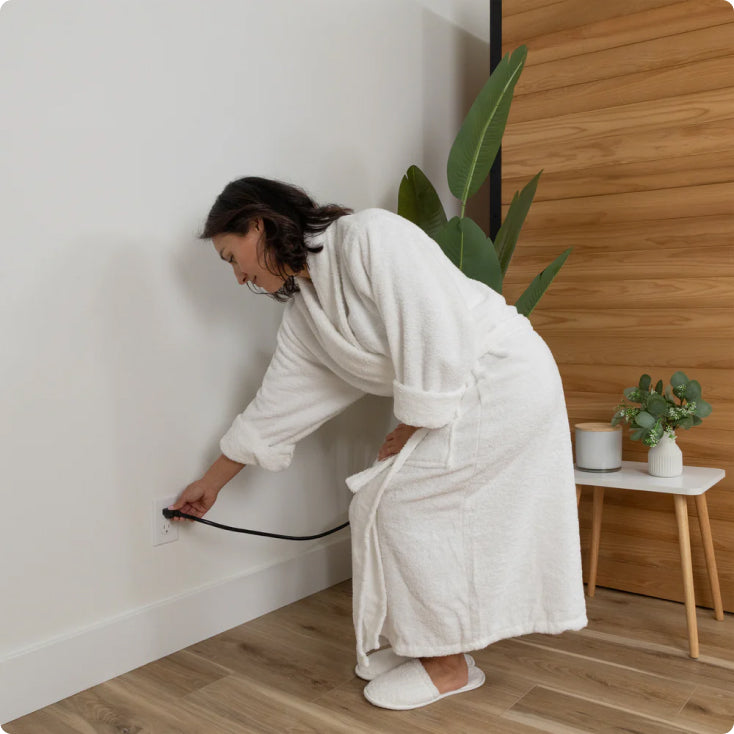

120V Plug-and-Play: As Simple as a Kitchen Appliance
Your model runs on standard 120V household power, the same voltage as a lamp or a kitchen appliance. There is one important requirement: the circuit must be dedicated.
- Dedicated circuit required
- No electrician needed if circuit exists
- 9 ft cord
- Draws up to 1,760W
| Specification | 1 & 2-Person Models |
| Voltage | 120V |
| Amperage | 15A |
| Wattage | 1,760W |
| Circuit Type | Dedicated (not shared) |
| Outlet Type | NEMA 5-15R (standard 3-prong) |
| Cord | Factory-attached, ~12 ft, exits roof of unit |
| Electrician Required? | No, if a dedicated 15A circuit already exists |
| GFCI | Not required for typical indoor installation |
| Certification | ETL Certified (full sauna) |
What "Dedicated Circuit" Means and Why It Matters
A dedicated circuit runs from your electrical panel to a single outlet, powering nothing else. It does not share a breaker with other outlets, lights, or appliances in the room.
Your sauna draws up to 1,760 watts continuously. A shared circuit (one that also powers a TV, space heater, or overhead light) may not have enough remaining capacity. Overloading a shared circuit will trip the breaker repeatedly and can create a fire hazard.
Go to your electrical panel. A dedicated circuit has its own breaker that serves only one location. If the label says "bedroom outlets" or "living room," it's almost certainly shared. If it says "sauna," "spa," or the specific room name alone, it may be dedicated; verify with an electrician if unsure.
Do I Need an Electrician?
- If a dedicated 15A circuit already exists in your planned room: No electrician needed. Plug directly into that outlet and you are ready to go.
- If no dedicated circuit exists: Yes: have a licensed electrician add one before the sauna arrives. This is a minor job, typically $100–$300 depending on panel distance and local labor rates.
Never use an extension cord, power strip, or any plug adapter. Extension cords are not rated for sustained high-wattage appliances and create fire and shock hazards. If the cord does not reach your planned outlet, reposition the sauna or have an electrician relocate the outlet.
INDOOR USE ONLY
This Is Not Just a Recommendation: It's a Product Requirement
The Rylan Collection is engineered for indoor installation. Operating the sauna in an unsuitable environment can void the warranty, create electrical hazards, and damage components.
- Dedicated sauna room or home spa
- Finished basement with climate control
- Bedroom, home gym, or bonus room
- Garages (protected from moisture; performance best when climate-controlled)
- Covered patios or screened porches
- Any space exposed to rain, snow, or high humidity
- Spaces exposed to rain, snow, or standing moisture
- Sheds or spaces subject to temperature extremes
Note: Garages are generally a suitable location for these saunas, provided they are protected from moisture, rain, and snow. Performance is best in climate-controlled conditions; in an unheated garage the sauna may take longer to reach temperature in cold weather. Ensure adequate ventilation, particularly if vehicles are also stored in the space.
A NOTE FOR YOUR ELECTRICIAN
GFCI and Breaker Guidance
GFCI protection is standard for wet or damp locations: bathrooms, kitchens, and outdoor circuits. The Rylan Collection is an indoor unit, and GFCI is not required for typical indoor installations of this type.
Model 1 & 2-Person (120V / 15A)
- GFCI Requirement: Not required for typical indoor installation
- Recommended Breaker: Standard 15A single-pole breaker
Model 4-Person (240V / 20A)
- GFCI Requirement: Not required for typical indoor installation
- Recommended Breaker: Standard 2-pole 20A breaker
PRE-DELIVERY CHECKLIST
Confirm everything before your sauna arrives
Work through every item below. Print or save this checklist to share with your electrician or refer to on delivery day.
1 & 2-Person Models: 120V Pre-Delivery Checklist
Rylan Indoor Infrared Sauna · 120V / 15A · Plug-and-Play
Room Readiness: All Models
Electrical: 1 & 2-Person Specific
THE GOOD NEWS
Your Sauna Ships Ready to Assemble. The Electrical Connections Are Simple.
Every Backyard Discovery Rylan infrared sauna ships with its panels fully pre-wired. During assembly, you connect the panels together using simple, consumer-friendly plug-in connectors, the same push-together style you'd find on everyday electronics. No tools, no electrical experience, and no electrician access to the interior is required. The only external connection is the power cord to the wall outlet.
- All panels arrive fully pre-wired. During assembly you connect them together using simple push-in connectors. No tools or electrical knowledge needed. The power cord then exits from the roof and plugs directly into a wall outlet. Cord length is approximately 9 ft (1 & 2-person) or 12 ft (4-person).
- No internal electrical work. Your electrician does not need access to the interior of the sauna. Their work stops at the wall outlet.
- No adapters. No extension cords. Ever. The sauna must plug directly into its dedicated wall outlet. Power strips and extension cords create fire and shock hazards and are not permitted under any circumstances.
- Indoor use only. The Rylan Collection is designed exclusively for indoor, climate-controlled spaces. See the Indoor Use section below.
YOUR ELECTRICAL SETUP
240V / 20A Dedicated Circuit: Electrician Required Before Delivery
Your model requires a higher-voltage circuit, ideally complete before the sauna arrives. Each panel arrives fully pre-wired, and you connect them during assembly using simple push-in connectors; the only work needed at the wall is installing the correct circuit and outlet.
This circuit requires skilled electrical work at the level a licensed electrician performs. If you have that experience and are comfortable working with 240V circuits, and understand local code/required permitting, you may do this work yourself; it does not affect your warranty.
- Licensed electrician required
- 2-pole 20A breaker
- Draws 3,400W / ~14A continuous
| Specification | 4-Person & 4-Person Corner Models |
| Voltage | 240V |
| Amperage | 20A |
| Wattage | 3,400W |
| Circuit Type | Dedicated (not shared) |
| Outlet Type | NEMA 6-20R (240V, 20A receptacle, not a standard household outlet) |
| Cord | Factory-attached, ~12 ft, exits roof of unit |
| Breaker | 2-pole 20A (occupies two adjacent panel slots) |
| Installation Requirement | 240V / 20A skilled electrical work; licensed electrician or equivalent experience required |
| GFCI | Not required for typical indoor installation; defer to local code |
| Disconnect Switch | NEMA 6-20R outlet typically serves as disconnect (NEC Art. 422); confirm with local code |
| Certification | ETL Certified (full sauna) |
What Your Electrician Needs to Install
- A dedicated 240V / 20A circuit run from your electrical panel to the sauna location

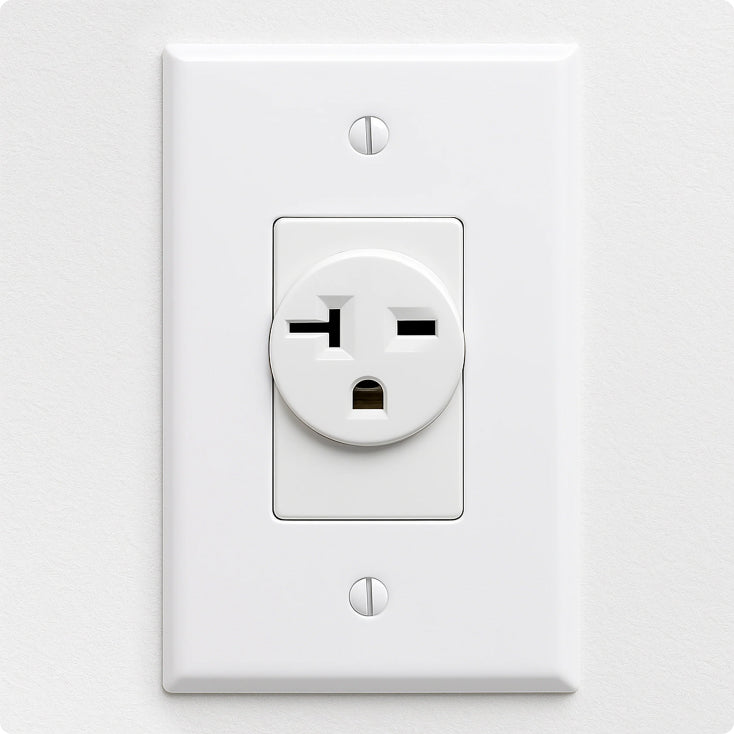

- A NEMA 6-20R outlet at standard outlet height (this is a 240V, 20A receptacle, not the same as a standard household outlet)
- The outlet must be positioned so the factory-attached cord (~12 ft, exiting the roof of the unit) reaches comfortably without tension
Your electrician does not run wiring inside the unit or connect to any panels. Their work stops at the wall outlet. The panel connections inside the sauna are made by you during assembly using simple push-in connectors, a straightforward step with no electrical experience required.
Panel Requirements: Confirm Before Calling an Electrician
- A 240V / 20A circuit requires a 2-pole 20A breaker, which occupies two adjacent slots in your electrical panel.
- Confirm your panel has two open adjacent slots before scheduling. Most modern 200A panels have capacity; older 100A panels may be near capacity.
- If your panel is full, your electrician may recommend a subpanel ($300–$700) or a panel upgrade ($1,000–$2,500). This is the primary driver of high-end cost estimates.
Placement Planning: Do This Before the Electrician Visit
- Decide exactly where in the room the sauna will sit. The electrician needs to know this to plan the circuit route.
- The power cord exits the roof of the sauna and is approximately 12 feet long. Plan the outlet location so the cord reaches without tension.
- Measure the distance from your electrical panel to the outlet location and share it with every electrician when getting bids; it is the primary driver of cost.
Permits & Inspections
- Most jurisdictions require an electrical permit for any new 240V circuit. Typical permit cost: $50–$300. Your electrician typically pulls the permit.
- Most areas require a final inspection after the circuit is installed. Factor in 1–2 weeks for inspection scheduling when planning your delivery date.
- Confirm whether permit fees are included in the bid or billed separately.
Because your sauna is cord-and-plug connected (not hardwired), the NEMA 6-20R outlet itself typically serves as the disconnect under NEC Article 422, provided the outlet remains accessible after the sauna is in place. Position the outlet so it stays reachable. Confirm with your electrician, as local AHJ interpretation varies.
ELECTRICIAN COSTS
What the Electrical Work Typically Costs
Because this is an indoor installation (no trenching, no underground conduit, no weatherproofing), costs are significantly lower than outdoor sauna electrical work.
Simple
$150–$400
Panel has capacity, sauna is near the panel, short straight run, minimal obstacles.
Mid-Range, Most Common
$400–$800
Moderate distance from panel (25–50 ft), some routing through walls or ceiling, permit included.
Complex
$800–$1,500+
Long run (50+ ft), difficult routing, panel upgrade or subpanel required.
Note: Ranges above are for the 4-person circuit install. If you need a new dedicated 15A circuit added instead (1 or 2-person), that is a minor job typically costing $100–$300.
What Moves the Price
- Distance from panel – The #1 cost driver. A panel in the next room is a simple job; a panel across the house adds significant wire and labor.
- Routing complexity – Running through finished walls, ceilings, or floors takes more labor than an unfinished space.
- Panel capacity – A full panel needing a subpanel ($300–$700) or upgrade ($1,000–$2,500) is the primary high-end driver.
- Local labor rates – Electrician rates vary by market ($60–$130/hr). Urban and coastal markets tend to be at the high end.
- Permits & inspection – Typically $50–$200 and usually required. Some electricians include this; others bill separately.
- Outlet placement – If the outlet requires opening drywall, add $50–$200 for drywall repair. The NEMA 6-20R outlet itself is $10–$25.
How to Get Comparable Bids
Get 2–3 written bids. Tell each electrician:
- The room where the sauna will be installed and the approximate distance to the electrical panel
- The spec: "I need a dedicated 240V / 20A circuit with a NEMA 6-20R outlet at standard outlet height"
- Whether a permit needs to be pulled (almost certainly yes for a new 240V circuit)
Ask each bidder:
- Is your quote all-inclusive: materials, labor, permit, outlet, and any drywall patching?
- What 2-pole 20A breaker brand do you plan to use, and is it compatible with my panel?
- The sauna is cord-and-plug connected to a NEMA 6-20R outlet. Does local code require a separate disconnect, or does the accessible outlet satisfy that?
- What is your estimated timeline, and who schedules the inspection?
INDOOR USE ONLY
This Is Not Just a Recommendation: It's a Product Requirement
The Rylan Collection is engineered for indoor installation. Operating the sauna in an unsuitable environment can void the warranty, create electrical hazards, and damage components.
- Dedicated sauna room or home spa
- Finished basement with climate control
- Bedroom, home gym, or bonus room
- Garages (protected from moisture; performance best when climate-controlled)
- Covered patios or screened porches
- Any space exposed to rain, snow, or high humidity
- Spaces exposed to rain, snow, or standing moisture
- Sheds or spaces subject to temperature extremes
Note: Garages are generally a suitable location for these saunas, provided they are protected from moisture, rain, and snow. Performance is best in climate-controlled conditions; in an unheated garage the sauna may take longer to reach temperature in cold weather. Ensure adequate ventilation, particularly if vehicles are also stored in the space.
A NOTE FOR YOUR ELECTRICIAN
GFCI and Breaker Guidance
GFCI protection is standard for wet or damp locations: bathrooms, kitchens, and outdoor circuits. The Rylan Collection is an indoor unit, and GFCI is not required for typical indoor installations of this type.
Model 1 & 2-Person (120V / 15A)
- GFCI Requirement: Not required for typical indoor installation
- Recommended Breaker: Standard 15A single-pole breaker
Model 4-Person (240V / 20A)
- GFCI Requirement: Not required for typical indoor installation
- Recommended Breaker: Standard 2-pole 20A breaker
PRE-DELIVERY CHECKLIST
Confirm everything before your sauna arrives
Work through every item below. Print or save this checklist to share with your electrician or refer to on delivery day.
4-Person Models: 240V Pre-Delivery Checklist
Rylan Indoor Infrared Sauna · 240V / 20A · Electrician Required
Room Readiness: All Models
Electrical: 4-Person Specific
Ready to Order Your Infrared Sauna?
Explore the full Rylan Collection: 1, 2, and 4-person models, ready to assemble and plug in.
Questions? Our team is available Mon–Sun, 8am–6pm CT. Visit our support page.
Disclaimer:
This guide is for informational and planning purposes only. It is not electrical, engineering, or legal advice. Electrical codes vary by location and change over time. All electrical work must be performed by a licensed electrician in compliance with your local building codes and the manufacturer's installation manuals. Cost estimates are approximate ranges and may not reflect pricing in your area.
